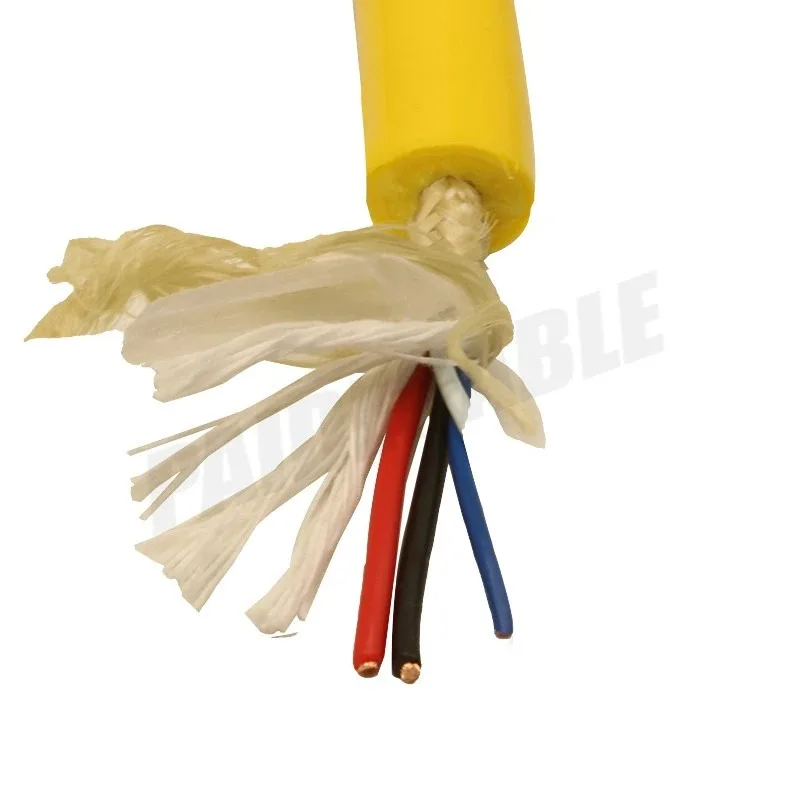

PDK81602 2×1.0 mm² + 1×2×0.5 mm² Neutrally Buoyant ROV Cable, 14.0 mm

Zero-Buoyancy Cables · Marine & Subsea

PDK81602 2×1.0 mm² + 1×2×0.5 mm² Neutrally Buoyant ROV Cable, 14.0 mm

PDK81602 neutrally buoyant cable with 2×1.0 mm² power cores and one 0.5 mm² pair, Kevlar braid, foam inner sheath, 14.0 mm OD, 1000-2000 m depth rating.

Request pricing → Email engineering

Project-specific customisation is available: conductor cross-section and core count, shield type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Applications:

Underwater vehicles and equipment

Oceanographic research

Subsea communication systems

Model: PDK81602-2×1.0+1×2×0.5

Construction:

- 2 cores 1.0 mm² (17AWG)

- 1 pair 0.5 mm² (20AWG)

Insulation: polyethylene

Inner sheath: PUR foam

Outer sheath: PUR

Outer sheath colour: yellow

Strength member: Kevlar braid (200 kg)

Outer diameter: 14.0 mm

Temperature range: -30 °C to 105 °C

Depth rating: 1000-2000 m

Features: oil resistance, flame retardancy, hydrolysis resistance, anti-microbial and UV resistance, among others.

Underwater ROV cables are among our typical products. We can customise different sizes and types to each customer's requirements.
