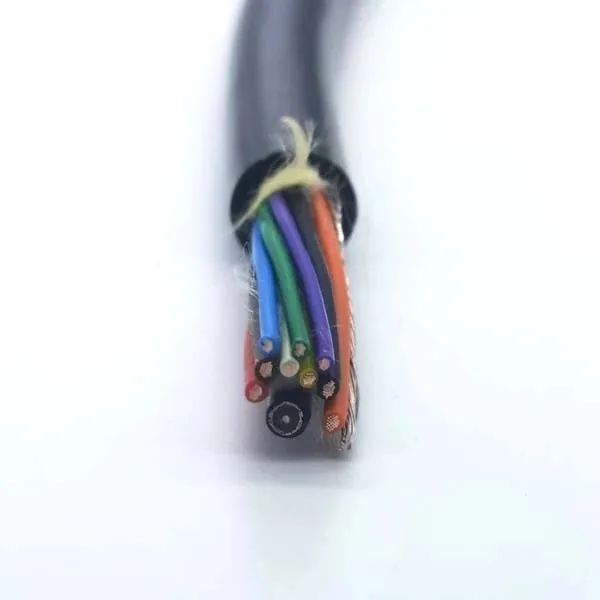

Drain Camera Cable - 4x0.5 mm2, 5x0.2 mm2 and 75 Ohm Coax, 200 kg Kevlar

Name: Drain Camera Cable - 4x0.5 mm2, 5x0.2 mm2 and 75 Ohm Coax, 200 kg Kevlar
Brand: PAIDE

Pipeline Inspection Robot Cables · Industrial Automation

Pipeline robot drain camera cable with 4x0.5 mm2 (20AWG), 5x0.2 mm2 (24AWG) cores and a 75-2 coax, 200 kg Kevlar braid, PUR sheath, 9.0 mm OD.

Construction

4x0.5 mm2, 5x0.2 mm2 and 75 Ohm Coax, 200 kg Kevlar

Tensile strength

200 kg

Request pricing → Email engineering

Customized per project: conductor cross-section and core count, shield type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product description

Applications:

These high-quality drain camera cables, also called pipeline robot cables or sewer camera cables, are used for pipeline robot traction, lighting, control, TV camera work, signal transmission and power supply. They are widely used in downhole measurement and monitoring, underground geophysical survey, mining and exploration.

Cable construction:

- 4 cores x 0.5 mm2 (20AWG)

- 5 cores x 0.2 mm2 (24AWG)

- 75 ohm coaxial (75-2)

Conductor: multi-strand oxygen-free copper, to VDE 0295 Class 6

Coaxial: 75-2, 75-2, suitable for video transmission up to 200 m

Insulation: polyethylene

Strength member: Kevlar braid (200 kg)

Outer sheath: PUR

Sheath color: black

Outer diameter: 9.0 mm

Features: abrasion resistance, corrosion resistance, acid and alkali resistance, oil resistance.

Temperature range: fixed installation -40 C to +90 C, mobile installation -30 C to +90 C

Pipeline robot cables are produced with imported purpose-made polyurethane (PUR) cable technology and machinery; while keeping the cable flexible, they deliver good all-round performance. The cable is also waterproof, oil-resistant, cold-resistant, UV-resistant, flame-retardant and tensile-resistant, which suits the high-risk, demanding environments of pipeline inspection, pipeline testing, pipeline maintenance and pipeline cleaning, and allows it to replace manual work in complex environments.

If you cannot find the model you need, please contact us at any time.
