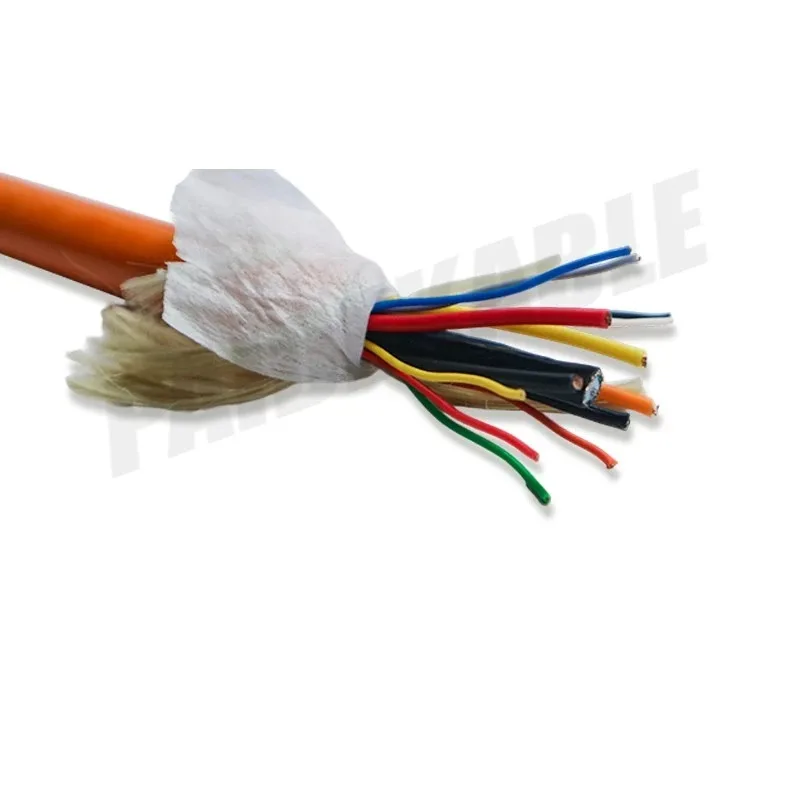

PDK71301-4×0.75+75-3+4×2×0.15 Heavy-Duty Pipeline Inspection Robot Cable, 300kg

Name: PDK71301-4×0.75+75-3+4×2×0.15 Heavy-Duty Pipeline Inspection Robot Cable, 300kg
Brand: PAIDE
SKU: PDK71301

Pipeline Inspection Robot Cables · Industrial Automation

PDK71301

Pipeline robot tether with four 0.75mm² power cores, a central 75-3 coax and four 0.15mm² pairs, 300kg breaking strength and a PUR jacket.

Model

PDK71301

Specification

4 × 0.75mm² + 1 × 75-3 coax + 4 × 2 × 0.15mm²

Tensile strength

≥300 kg

Jacket

PUR, oil- and abrasion-resistant

Request pricing → Email engineering

Custom-built to project requirements: conductor cross-section and core count, shielding type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

This cable is designed for the severe environment of pipeline inspection robots. It combines power transmission, high-fidelity video transmission and high tensile strength in one integrated solution, so that the tracked crawler operates reliably under the most challenging conditions.

Key features and benefits:

High tensile strength: the cable has a minimum breaking strength of 300 kg, enough to withstand the pulls encountered during long-distance pipeline inspection, preventing breakage and keeping the job continuous.

Integrated signal and power design:

Power conductors: 4 × 0.75mm² cores provide stable, reliable power for the robot and its on-board systems.

Video transmission: a central 75-3 low-loss coaxial cable maintains clear video signal integrity, which is essential for accurate visual assessment and decision-making.

Auxiliary signal and control: 4 pairs of 2 × 0.15mm² wires give flexibility for additional data communication, such as control signals, sensor data or PTZ (pan-tilt-zoom) camera functions.

Durability: the robust TPU outer jacket offers good resistance to abrasion, oil, chemicals and moisture, which are common inside pipelines. Its sturdy construction ensures long-term reliability and reduces downtime.

Optimised for robot crawlers: the balanced design minimises torque and prevents kinking, which allows smooth paying out and spooling by the tether management system. This improves handling and reduces wear on both cable and robot.

Technical specifications:

Construction: 4 × 0.75mm² + 1 × 75-3 coax + 4 × 2 × 0.15mm²

Tensile strength: ≥300 kg

Core components: power cores, low-loss coaxial cable, signal/control pairs

Jacket: oil-resistant, abrasion-resistant PUR

Applications:

The cable is a tether solution for a wide range of pipeline inspection and maintenance robots, including:

Industrial pipeline inspection (oil and gas, chemical)

Municipal sewer and drain line assessment

HVAC duct inspection robots

Crawlers for long-distance transmission pipelines

Please contact us for detailed data sheets, custom length enquiries and pricing.
