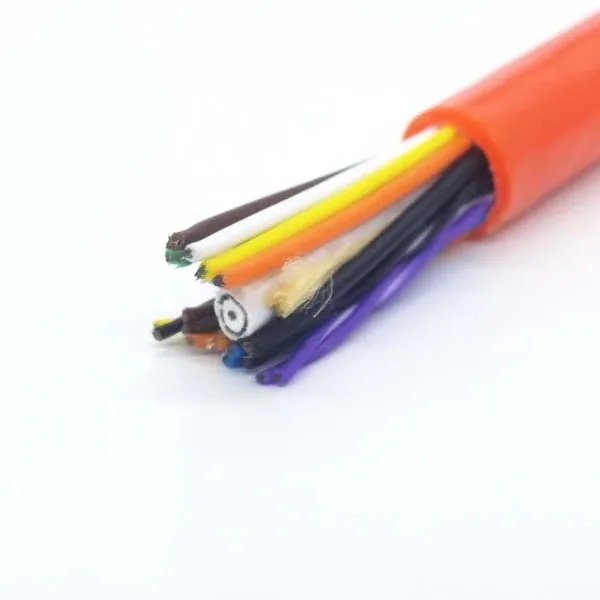

Pipeline Camera Cable, 5×22AWG + 18×27AWG + 75-2 Coax, PUR, 10.3mm

Name: Pipeline Camera Cable, 5×22AWG + 18×27AWG + 75-2 Coax, PUR, 10.3mm
Brand: PAIDE

Pipeline Inspection Robot Cables · Industrial Automation

Pipeline camera cable with five 0.34mm² and eighteen 0.1mm² cores plus 75-2 coax, Kevlar strength member rated 100kg, orange PUR sheath, 10.3mm OD.

Request pricing → Email engineering

Supports project-specific customisation: conductor cross-section and core count, shielding type, sheath colour, length and print legend can be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Application:

These sewer camera cables are used for pipeline robot towing, lighting, control, television imaging, signal transmission and power supply. They are widely used in downhole measurement and monitoring, underground geophysical survey, mining and exploration.

Cable construction:

- 5 cores × 0.34mm² (22AWG)

- 18 cores × 0.1mm² (27AWG)

- 75 ohm coaxial (75-2)

Conductor: multi-wire oxygen-free copper, to VDE 0295 Class 6

Coaxial: 75-2, suitable for video transmission up to 200m

Insulation: polyethylene

Filler: Kevlar fibre as strength member, tensile strength 100kg

Outer sheath: PUR

Sheath colour: orange

Outer diameter: 10.3mm

Features: abrasion resistant, corrosion resistant, acid and alkali resistant, oil resistant.

Temperature range: fixed installation -40℃ to +90℃, mobile installation -30℃ to +90℃

The pipeline robot cable adapts well to difficult site terrain, frequent deployment and recovery and harsh weather, and offers corrosion resistance, bending resistance, abrasion resistance, cold resistance, tensile strength and good insulation. In service it has been shown that its mechanical, electrical and watertight performance meet the requirements of field work, making it a dedicated cable for downhole survey and other field applications.

Please contact us if you cannot find the type you need.
